The Core Application Basics​

Concepts

  • Developer perspective: The architecture is viewed from the lens of a developer writing code that must eventually run on a server
  • The server: At its simplest level, a server is just a computer that handles requests and serves users
  • Deployment: Code does not go directly to a server, it goes through an intermediate build and deploy step
    • This can happen on a local machine or, more commonly in professional settings, on a CI/CD server
  • User interaction
    • Users (usually via a browser) send requests to the server
    • Frontend: The server may respond with HTML and JavaScript to load a page
    • Backend: The browser may request data from an API, and the server responds with data (often in JSON format)

Data Storage​

Concepts

  • Persistence: Servers need a way to store data permanently
  • External storage: While a server has its own disk, it has limitations, so production apps use distributed storage connected over a network
    • This storage is often a database, but it can be any mechanism for storing information
    • These storage systems run on their own computers and may even be located in different parts of the world

Scaling: Handling Growth​

Vertical Scaling​

Concepts

  • This involves making the single server better by upgrading its resources (e.g., a faster CPU, more RAM, or better hardware)
  • Think of it as adding a "block" to the server to make it stronger

Limitation: Even the fastest hardware has limits and cannot handle infinite requests

Horizontal Scaling​

Concepts

  • This involves creating multiple copies of the server to run the code
  • Requests are spread across multiple servers, allowing the system to handle more traffic without making individual servers faster

Load Balancing​

Concepts

  • When using horizontal scaling, a Load Balancer is required to decide which server receives a specific request
  • It ensures traffic is balanced so one server isn't overwhelmed while others are idle

External Communications​

Concept: Servers rarely work in isolation, they communicate with other external servers and APIs

Example: An application might talk to the Stripe API to handle payments

Observability (Logging & Monitoring)​

Context: Developers need to know how the application is performing without manually checking the server

Logging Service​

Concepts

  • Just as developers use print statements locally, servers generate logs to record what happens
  • Because servers are transient or busy, these logs are sent to an external service for storage
  • Developers review these logs to understand successful requests or diagnose problems

Metrics Service​

Concepts

  • Logs don't show the full picture, so developers track resource usage (CPU, RAM, storage)
  • Metrics can also be derived from logs (e.g., tracking the rate of failed vs. successful responses)
  • These are usually visualized in time-series charts to show trends over time

Alerting Service​

Concepts

  • Developers cannot watch charts 24/7 or wait for users to email them about bugs
  • An alerting system pushes notifications immediately when specific metrics cross a threshold

Example: If successful requests drop from 100% to below 95%, the system automatically notifies the developer

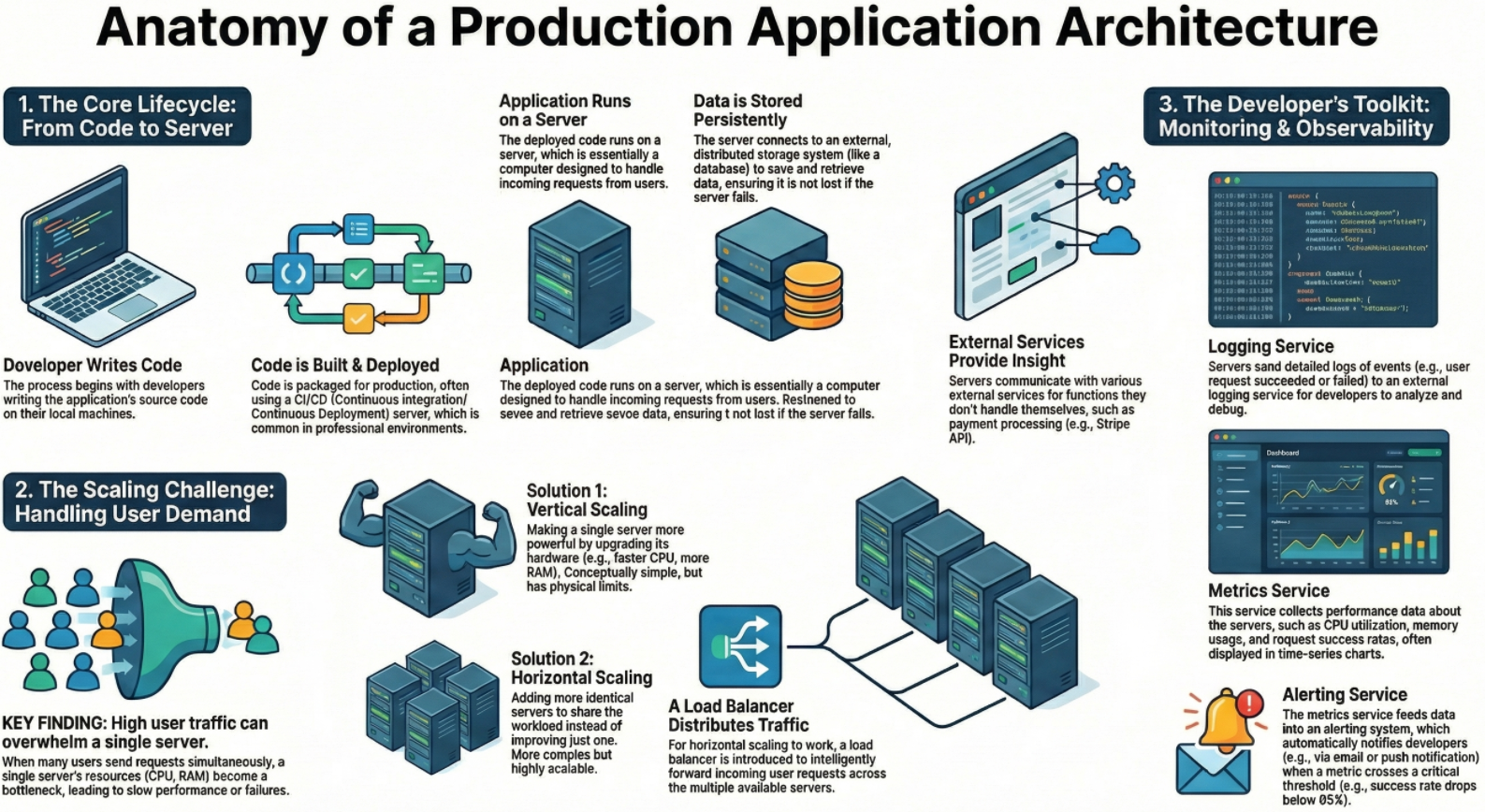

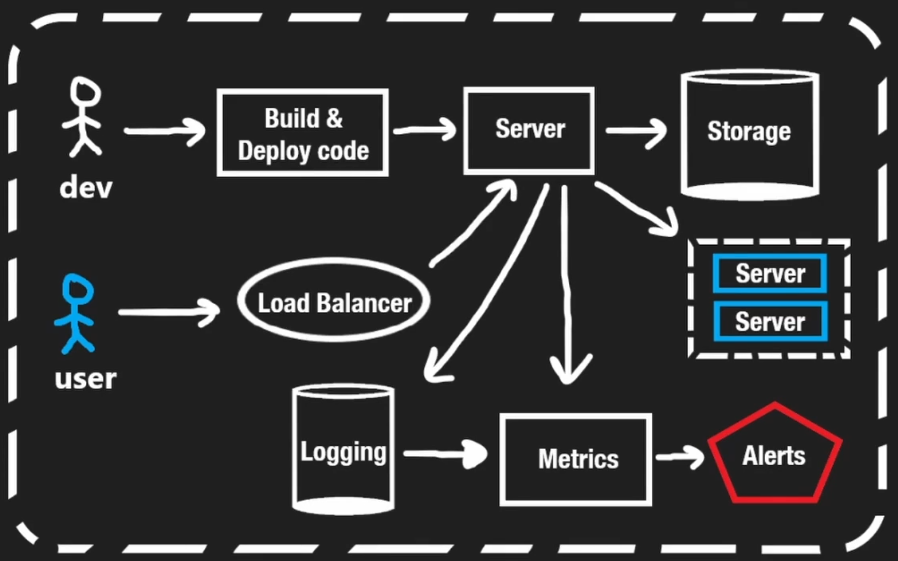

Infographics​
